홈 - 제품소개 - 서보 모터 및 인버터 - 델타 인버터 - VFD-VE (벡터 콘트롤)

특징

  • V/F, FOC+PG, SVC, Torque+PG, Position control
  • PG close-loop control, speed control range 1:1000
  • Built-in PID feedback control
  • Motor parameter and load inertial auto-tuning
  • 4 independent S-curve/accel/decel time setting
  • Mechanical braking release control function
  • Deceleration energy braking function
  • Motor Y-▲ switch control
  • 10 communication address for block transfer
  • I/O serial pulse position control

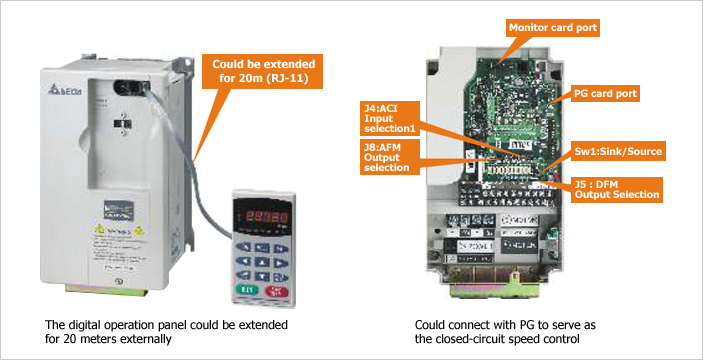

  • Monitor card and software
  • Auto energy saving at light load
  • Motor overheat protection (PTC function)
  • PI gain for zero/low/high speed and bandwidth setting
  • home search, Pulse command and 16 point position control

적용

  • Transmission devices
  • Elevators
  • Crane
  • CNC machine center
  • Extrusion molding
  • Injection molding
  • Auto storage system

표준사양
Voltage Class 230V Class

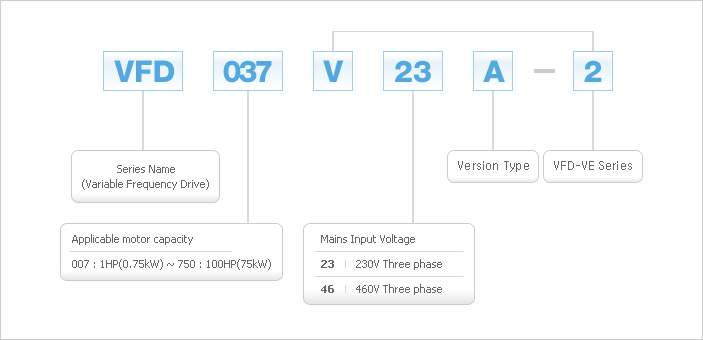

Model Number VFD-XXXV 007 015 022 037 055 075 110 185 220 220 300 370
Output Rating Rated Output Capacity (kVA) 1.9 2.7 4.2 6.5 9.5 13 19 29 34 34 46 55
Rated Output Current for Constant Torque (A) 5.0 7.5 11 17 25 33 49 75 90 90 120 146
Max. Applicable Motor Output (HP) 1.0 2.0 3.0 5.0 7.5 10 15 25 30 30 40 50
Rated Output Current for Variable Torque (A) 6.25 9.4 13 21 31 41 61 93 112 112 150 182
Max. Applicable Motor Output (HP) 1.5 2.5 4 7.5 10 15 20 30 40 40 50 60
Max. Output Voltage (V) 3-Phase Proportional to Input Voltage
Output Frequency (Hz) 0.00~600.00 Hz
Input Rating Rated Input Current (A) 6.4 9.9 15 21 25 33 52 63 68 79 106 126
Rated Voltage / Frequency 3-Phase, 200~240V, 50/60Hz
Voltage Tolerance ±10% (180~264V)
Frequency Tolerance ±5% (47~63Hz)
Cooling Method Natural Fan Cooled
Weight (kg) 2.7 3.2 4.5 6.8 8 10 13 13 13 13 36 36
Voltage Class 460V Class
Model Number VFD-XXXV 007 015 022 037 055 075 110 150 185 220 300 370 450 550 750
Output Rating Rated Output Capacity (kVA) 2.3 3.2 4.2 6.3 9.9 14 18 24 29 34 46 56 69 80 100
Rated Output Current for Constant Torque (A) 3.0 4.2 6.0 8.5 13 18 24 32 38 45 60 73 91 110 150
Max. Applicable Motor Output (HP) 1.0 2.0 3.0 5.0 7.5 10 15 20 25 30 40 50 60 75 100
Rated Output Current for Variable Torque (A) 3.8 5.3 7.5 10 16 22 30 40 47 56 75 91 113 138 188
Max. Applicable Motor Output (HP) 1.5 2.5 4 7.5 10 15 20 25 30 40 50 60 75 100 125
Max. Output Voltage (V) 3-Phase Proportional to Input Voltage
Output Frequency (Hz) 0.00~600.00 Hz
Input Rating Rated Input Current (A) 3-phase 380~480V
4.0 5.8 7.4 9.9 12 17 25 27 35 42 56 67 87 101 122
Rated Voltage / Frequency 3-Phase, 380 to 480V
Voltage Tolerance ±10% (342~528V)
Frequency Tolerance ±5% (47~63Hz)
Cooling Method Natural Fan Cooled
Weight (kg) 2.7 3.2 4.5 6.8 8 10 13 13 13 13 36 36 36 50 50
Control Characters
Control systems SPWM (Sinusoidal Pulse Width Modulation)
  • 1 V/f curve
  • 2 V/f+PG
  • 3 SVC
  • 4 FOC+PG
  • 5 TQR+PG
Torque Start-Up Starting torque is 150% at 0.5㎐ and 0㎐ (with FOC+PG Control mode)
Speed Control Range 1:100 (could reach 1:1000 when using with PG)
Speed Control Accuracy 0.5% (could reach 0.02% when using with PG)
Speed Respond Ability 5㎐ (FOC+PG control reaching 40㎐)
Max. Output Frequency 0.00 to 600.00 ㎐
Output Frequency Accuracy
  • Digital command : ±0.005%
  • Analog command : ±0.5%
Frequency Setting Resolution
  • Digital command : 0.01㎐
  • Analog command : 1/1000(10bit) of the maximum output frequency
Torque Limit 200% torque current as the maximum
Torque Accuracy ±5%
Accel / Decel Time 0.00~600.00 / 0.0~6000.0 second
V/f Curve The 4-point desired V/F curve & the square curve
Frequency Setting Signal +10V, ±10V, 4~20mA, pulse wave input
Braking Torque About 20%
Protection Characteristics Motor Protection Electronic thermal relay protection
Over-current Protection Current control
  • 220% over-current protection
  • 300% rated current
Ground Leakage Current Protection 50% rated current
Overload Ability Constant / Variable Torque : 150% for 60 seconds; 200% for 2 seconds
Voltage Protection
  • Over-voltage level : Vdc > 400/800 V
  • Low-voltage level : Vdc < 200/400 V
Input Power Over-Voltage Protection Varistor (MOV)
Overheat Protection Built-in temperature sensor
Momentary Power Loss Compensation The setting could be as long as 5 seconds
Environment Protection Level NEMA 1/IP20
Operation Temperature -10℃ to 40℃ for 15HP and above & -10℃ to 50℃ for 10HP and below
Storage Temperature -20℃ to 60℃
Humidity Below 90% RH (non-condensing)
Vibration
  • If it is below 20㎐, it is 1.0G
  • If between 20~60㎐, it is then 0.6G
Cooling System Forced cooling
Installation Location If under 1,000m, be advised to stay from corrosive gases, liquid and dust
Approvals

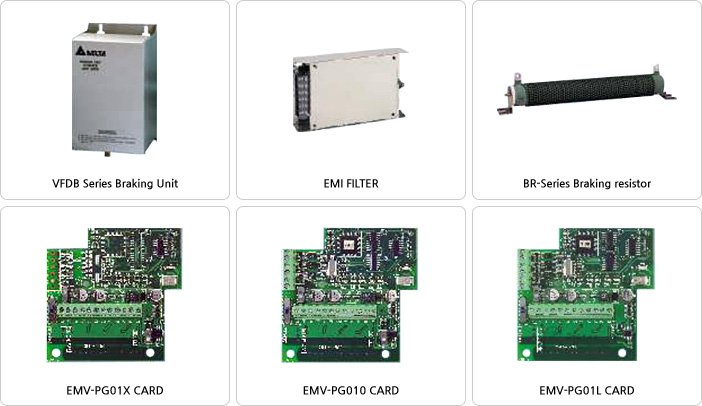

액세서리

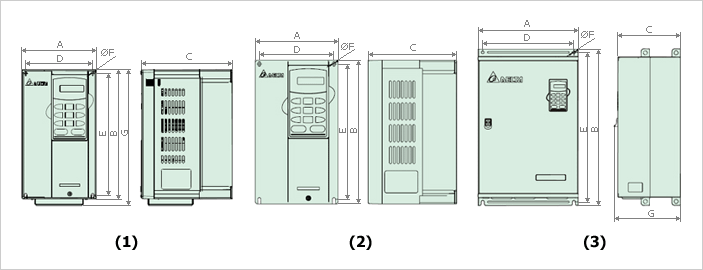

외형도 및 사양

Model Name A B C D E F G
(1) VFD037V23A/43A-2 150.0
(6.91)		 260.0
(10.24)		 183.7
(7.24)		 135.0
(5.32)		 244.3
(9.63)		 6.5
(0.26)		 272.1
(10.72)
(2) 007V23A/43A-2, 015V23A/43A-2
022V23A/43A-2		 150.0
(5.91)		 260.0
(10.24)		 160.2
(6.31)		 135.0
(5.32)		 244.3
(9.63)		 6.5
(0.25)
055V23A/43A-2, 075V23A/43A-2
110V43B-2		 200.0
(7.88)		 323.0
(12.72)		 183.2
(7.22)		 185.6
(7.31)		 303.0
(11.93)		 7.0
(0.28)
110V23A/43A-2, 150V23A/43A-2
185V23A/43A-2, 220V23A/43A-2		 250.0
(9.84)		 403.0
(15.9)		 250.4
(8.08)		 226.0
(8.90)		 384.0
(15.12)		 10.0
(0.39)
(3) 330V23A-2, 370V23A-2
550V43C-2, 70V43C-2		 370.0
(14.57)		 595.0
(23.43)		 260.0
(10.24)		 335.0
(13.19)		 560.0
(22.05)		 13.0
(0.51)		 -
300V43A-2, 370V43A-2
450V43A-2		 370.0
(14.57)		 589.0
(23.19)		 260.0
(10.24)		 335.0
(13.19)		 560.0
(22.06)		 13.0
(0.51)		 -
Voltage Applicable Motor Output (kW)
007 015 022 037 055 075 110 150 185 220 300 370 450 550 750
3-Phase 230V
180~265Vac		 B Frame C Frame D Frame E1 Frame
Braking transistor built-in
DC-Reactor built-in
3-Phase 460V
340~510Vac		 B Frame C Frame D Frame E Frame E1 Frame
Braking transistor built-in
DC-Reactor built-in
